Butt Welding Seamless 90 degree Stainless Steel Pipe Elbow/Bends Pipe R=2D 3D 4D 5D 6D 7D 8D 9D 10D

二维码
Material Carbon Steel/Stainless Steel/Alloy Steel
Brand: NXF
+86-13917160311
产品参数
Material
Carbon Steel/Stainless Steel/Alloy Steel
Brand:
NXF
我知道了
产品详情
Product Description

Seamless: From 1/2' up to 24' DN15-DN600

Welded: From 26' up to 80' DN650-DN2000

W. T: Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS

Radius: R=3D\ 4D\ 5D\ 6D\ 7D\ 8D\ 9D\ 10D

Bending angle (θ ): 15o\ 30o\ 45o\ 60o\ 90o\ 135o180o, and also could manufacture according to the angles given by the clients.

Straight Length (L): The length between two ends general from 300mm-1500mm,
and also can produce according to the clients' requirement to product.

Material: Carbon Steel, High steel grade: Gr. B 42 X46 X52 X56 X60 X65 X70 X80

Application Standard: ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391

Forming: Hot formed, Cold Drawn
Types: Seamless and Welded, LR & SR
End: Bevel, plain, thread, socket

Surface treatment:
1) Sandblasting
2) Paint black lacquer or transparent oil on surface to prevent corrosion

Application:
Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform.


Product Detailes:
O.D.Seamless: From 1/2" up to 24" DN15-DN600
Welded: From 26" up to 80" DN650-DN2000
W.T.Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS
Bending Radius (R)R=3D\ 4D\ 5D\ 6D\ 7D\ 8D\ 9D\ 10D.
Bending angle (θ )15o\ 30o\ 45o\ 60o\ 90o\ 135o180o, and also could manufacture according to
the angles given by the clients.
Straight Length (L)The length between two ends general from 300mm-1500mm,
and also can produce according to the clients' requirement to product.
MaterialCarbon steel (ASTM A234WPB,A234WPC,A420WPL6, ect)
Stainless steel(ASTM A403 WP304,304L,316,316L,321,ect)
Alloy steel(ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91, ect)
Application StandardASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391
FormingHot formed, cold drawn
TypeSeamless and Welded, LR & SR
EndBevel, plain, thread, socket
Surface Treatment1) Sandblasting
2) Paint black lacquer or transparent oil on surface to prevent corrosion
ApplicationPetroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform.
Packing1) Seaworthy wooden box for fittings with size from 1/2" ~ 14"
2) Seaworthy wooden pallet for fittings with size above 14"
3) According to the packing requirement of clients
WeightWeight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend)
MOQ10 piece
Delivery TermFOB(30% down payment in advance, the balance before shipment)

CIF or C&F(30% in advance , the balance against with the copy of B/L)
Delivery time15~30 days after receipt of advanced payment

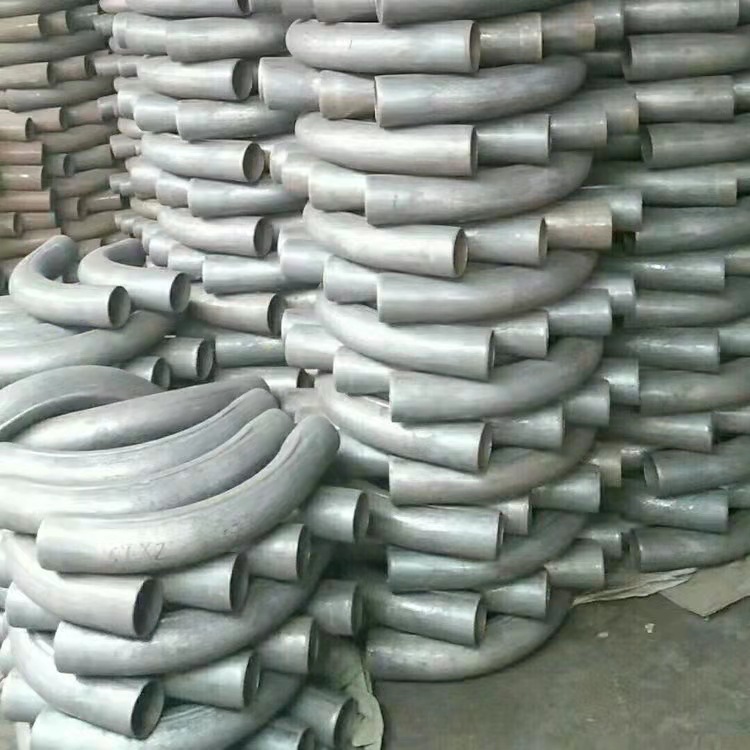

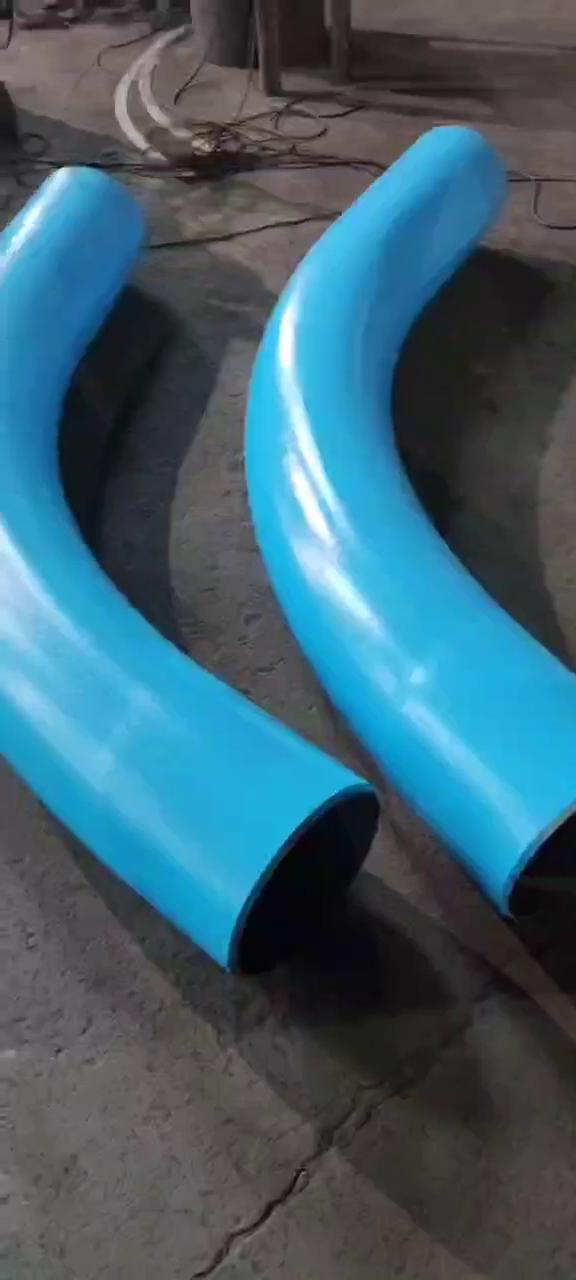

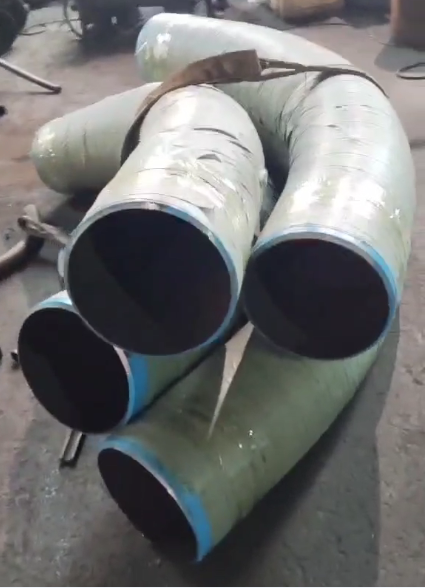

Product Display

Steel Pipe and Tube API 5L X56 R=5D 90 Degree Seamless Pipe Elbow For Oil Gas Water 1648610147(1).jpg1648610237(1).jpgO1CN01achlHp2NMEkMzyodk_!!2208321039948-0-cib.jpgO1CN01EKwzSp21J6XslnR8h_!!2210705656963-0-cib.jpgO1CN01Q2XI7621J6XvP3tqh_!!2210705656963-0-cib.jpgO1CN01v58j3l2NMEj7xCUi1_!!2208321039948-0-cib.jpgO1CN01z8vRDB2NMElbkIPno_!!2208321039948-0-cib.jpg1648610636(1).jpg1648610732(1).jpg1648610755(1).jpg
