Industrial cable carrier Shroud to protect the pivot mechanics stainless alloy aluminum hardened ste

二维码
Material steel stainless steel hardened steel
Brand: NXF
+86-13917160311
产品参数
Material
steel stainless steel hardened steel
Brand:
NXF
我知道了
产品详情
Product Description

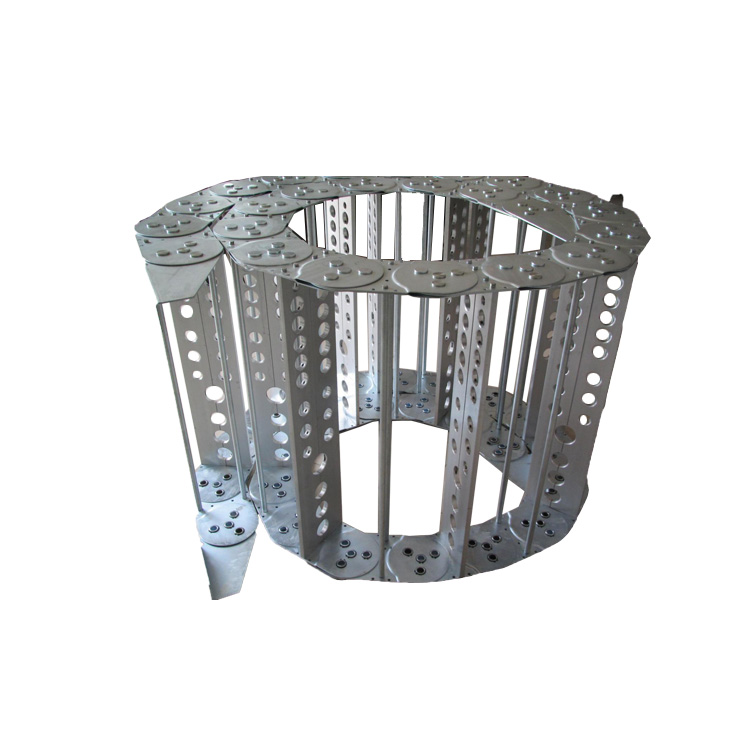

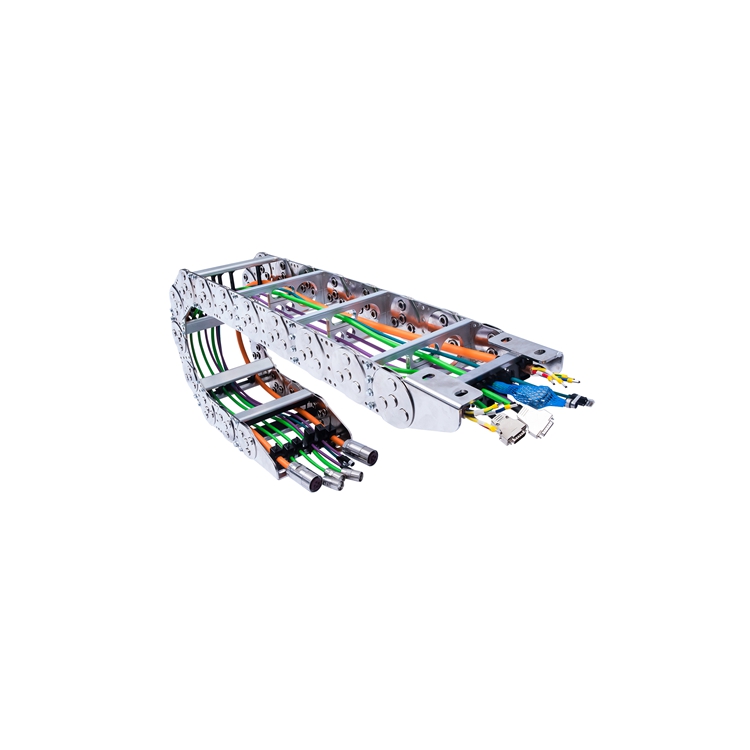

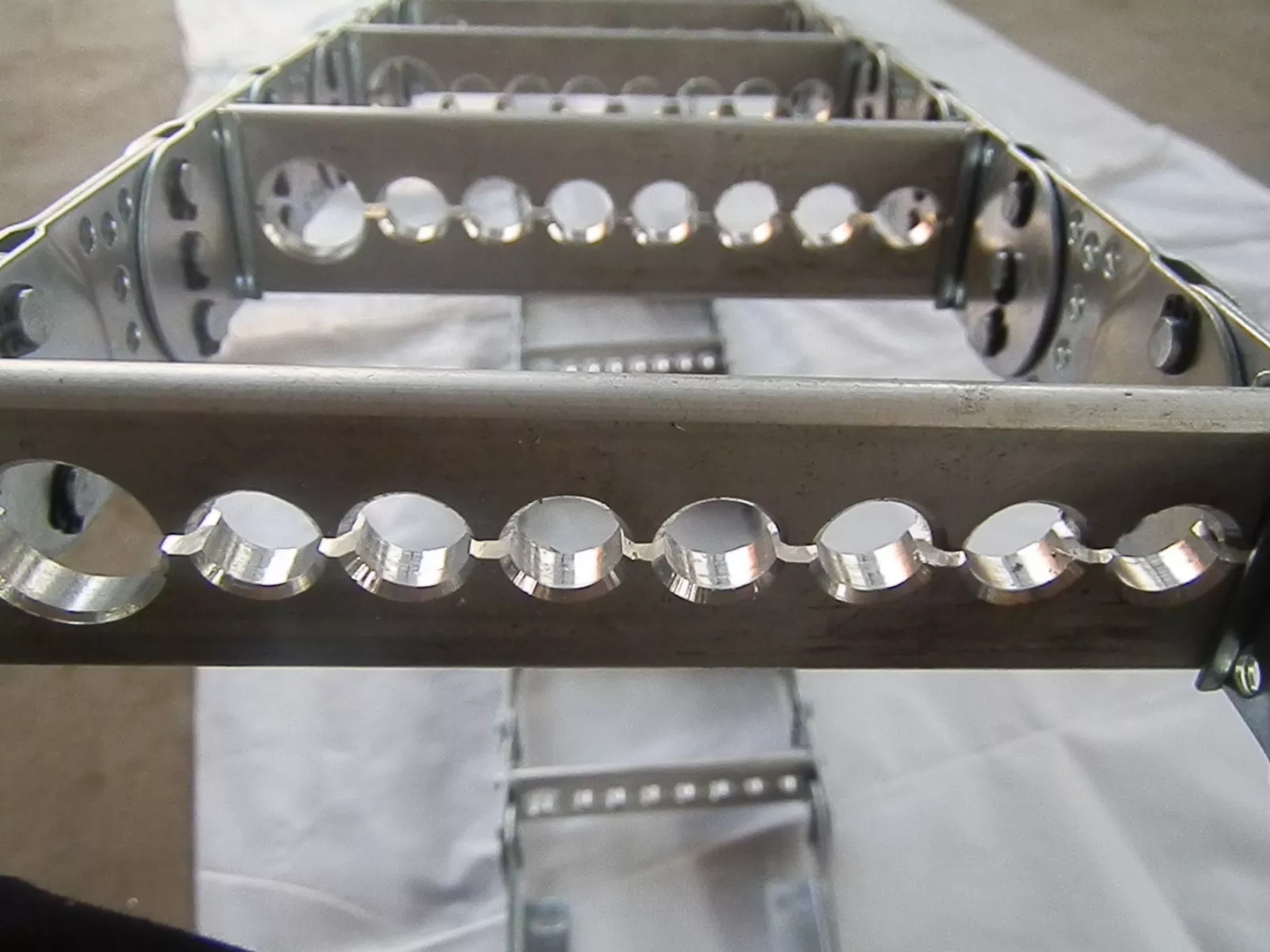

TL drag chains are mainly consisting of chain plate (top quality stainless steel with chromium plated), supporting board
(extruded aluminium alloy) and pinshaft (alloy), etc. There is no relative motions between the cables/rubber hoses and the drag chains, giving no deforming or twists. The chormium plated chain board has very nice-looking appearance and has very rational construction and flexible and high strength. It is reliable and easy to operate, install, dismantal or assemble. It is worthwhile mentioning that the anti-wearing performance has been inproved greatly due to wear resistant material and alloy pinshaft are used.
The product is flexible to bending and has low resistance, giving low noises. It can be used for a very long period of time
without any deformation or handing down.


Type
Min. width(mm)
height(mm)
Bending eadius(mm)
TL30
..40-100
25
20
TL45
35..
32
50/75/90/114/145
TL65
50..
49
75/90/115/125/145/185
TL80
55
56
100/115/125/145/185/200/250/300
TL95
60
75
114/145/200/250/300
TL115
70
86
145/200/225/250/300/350
TL125
80
96
200/250/300/350/470/500/575/700/750
TL155
90
120
200/250/300/350/450/500/600
TL180
100
144
250/300/350/450/490/600/650
TL225
160
200
400/450/600/750/800/850/1000
TL250
190
220
400/450/500/600/750/800/1000


H246333c9eb63413299f962a7ca6add51V.jpgH900ebb8c68d74d41b1fa9e29817da526J.webp.jpgH19ecd3699c7d43c58ce277e46732ef5dr.jpg8c81cb786435312e7dfe5925825b2ee.jpg0ae02d072b5b3be6ec46431f5af47b1.jpg9f8ffafdc30eafee5feb46a28bb38c4.jpg08f8cc6cdcc237857b89c287857f6a6.jpgH8e364e285b274ef3b0eae8b8f87b62228.webp.jpgH29f40605cb6d446d97b0ebf88395259bO.jpgHTB1lyHeOXXXXXb7apXXq6xXFXXXi.webp.jpg



Details Images

Temperature
Long term temperature limits are between -20°C and 600°C.
(for stainless the limits are -40°C and 600°C)


Travel Distance
The maximum range of travel is determined by the arrangement and the additional weight (line weight). At normal arrangement the
maximum travel is double the free carrying length. Support rollers or similar constructive steps can increase this value.
Travel distances up to 100 meters are possible.
Travel Speed
The standard and stainless steel designs are limited at 1 m/s.

Acceleration
There are no limits for the accelerations, in general. Limits may occur through the tensile stresses at high line weights.

Packing





FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, please feel free to contact us
