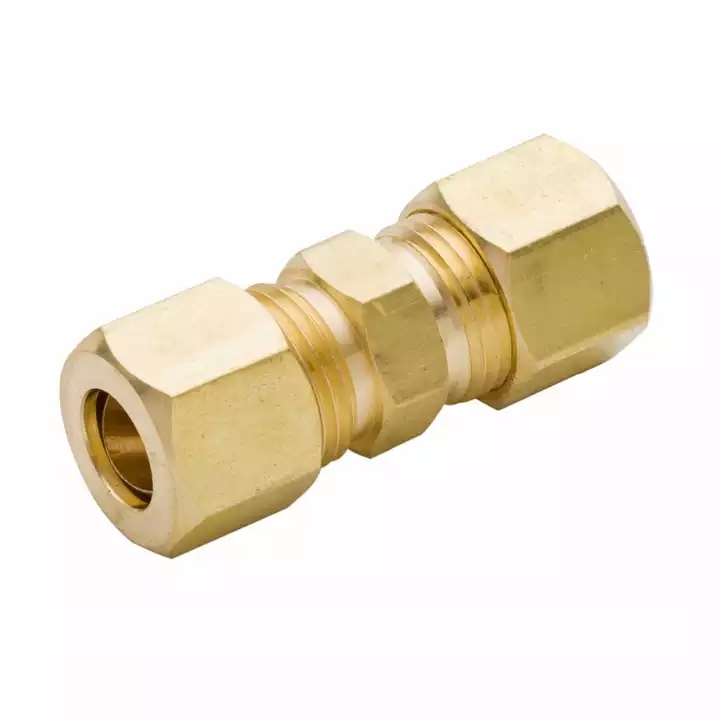

High Quality Forged CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Material CA 360 Brass for Barstock fittings.,CA377 Brass for forged fittings
Brand: NXF
+86-13917160311
Reservation Now
Detail
Product Description


Typical Application:
Instrumentation, hydraulic and pneumatic systems.
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on TUBE size. When using plastic tubing, use the working pressure for type used.
Vibration:
Fair resistance - use long nut when greater vibration resistance is needed.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range. (Refer to tubing temperature range.)
Material:
CA 360 Brass for Barstock fittings.,CA377 Brass for forged fittings
Used With:
Aluminum, copper and plastic tubing


Detailed Images

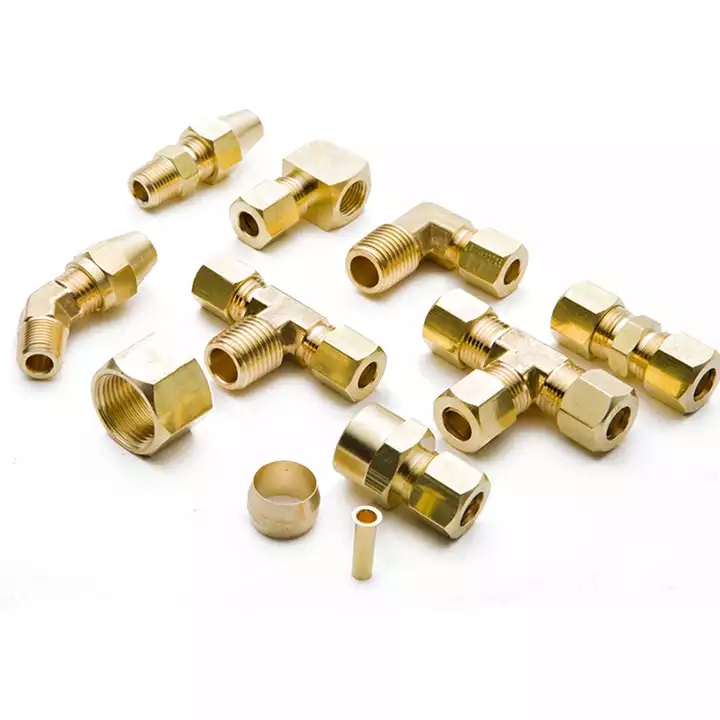

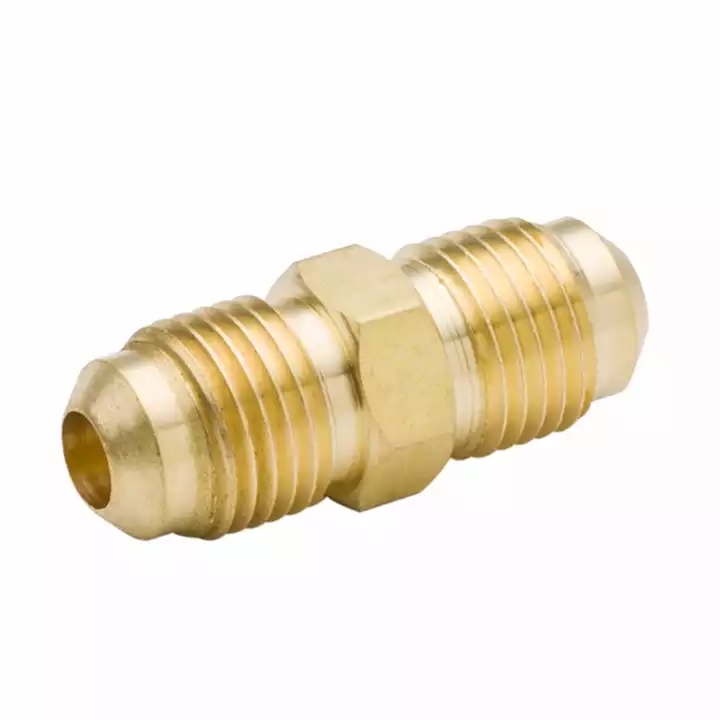

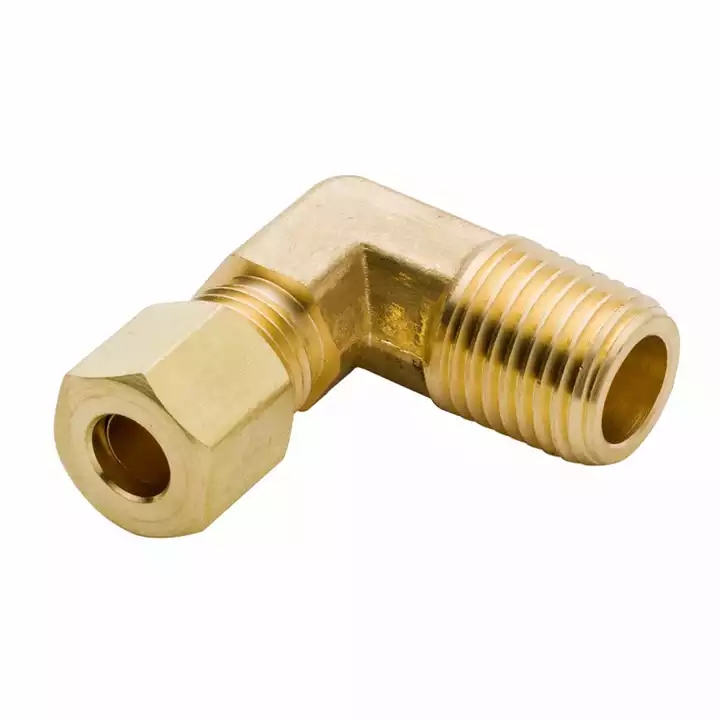

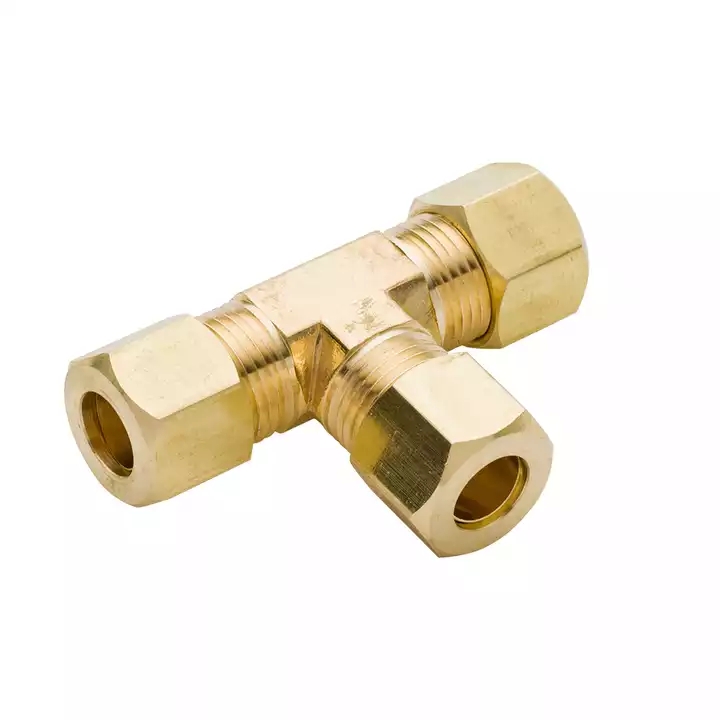

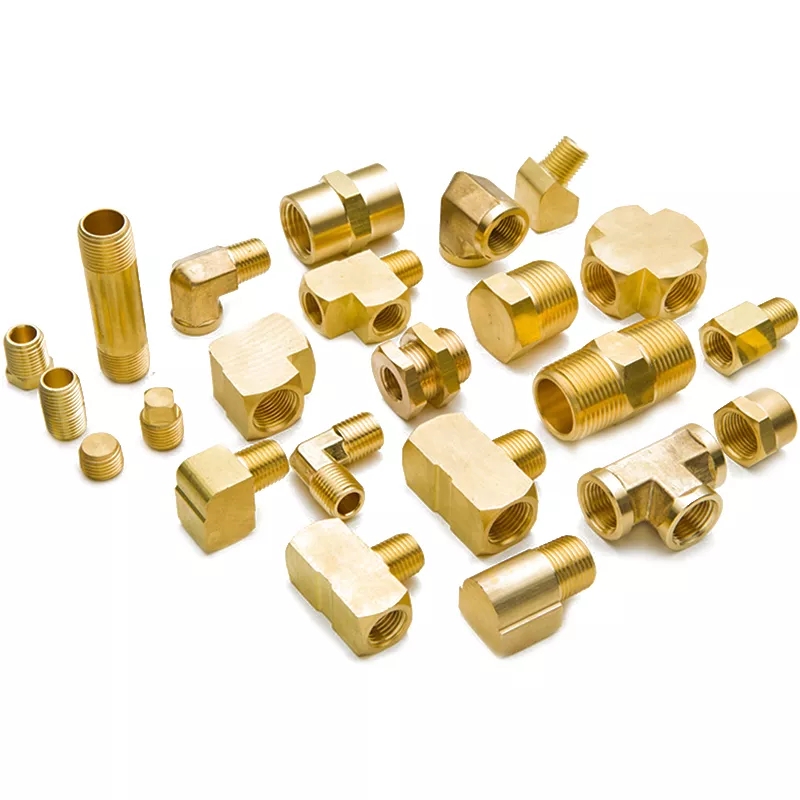

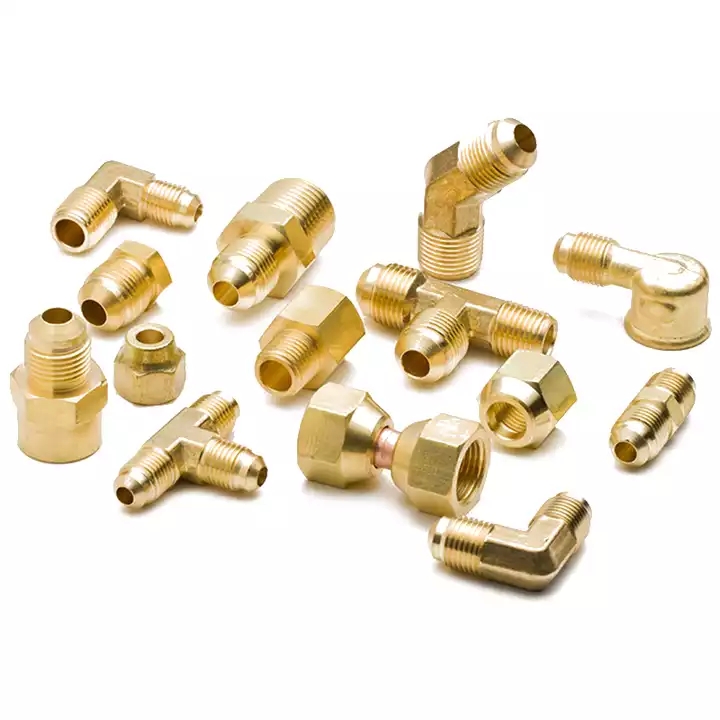

Hfb1fec0fd9f249ac88c8b2c590e28c57L.jpg_720x720q50.webp.jpgH1e523c25431e49038670d15d8108bfdaW.jpg_720x720q50.webp.jpgHe3b85e60c48f4c7ca78252fa96f17e7cH.webp.jpgH2f508239e59d4d5eae9a8dee57eaa16eL.jpg_720x720q50.webp.jpgHd85075574a77448187a00e416feb6743A.jpg_720x720q50.webp.jpgH95bdd25774e54a9190cbe327b667c94bs.webp.jpg

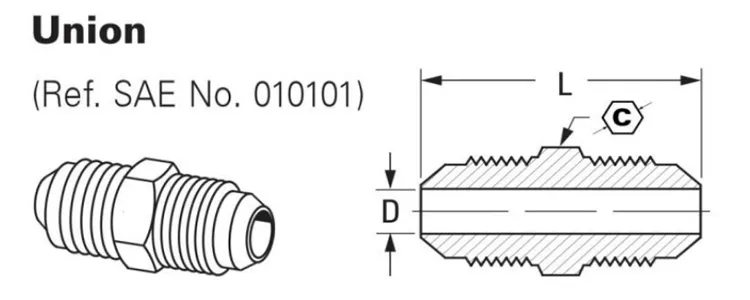

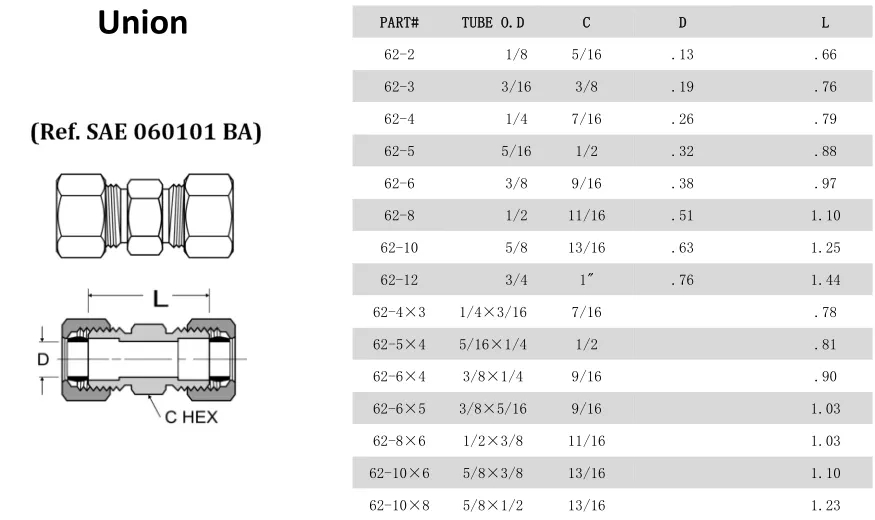

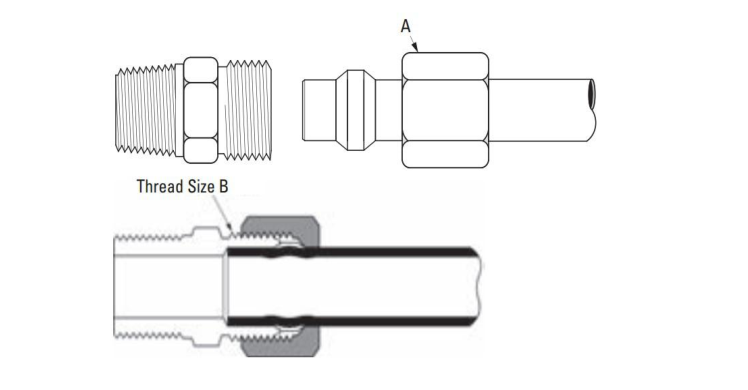

PART#
TUBE O.D
C
D
D1
L
42-2
1/8
7/16
.079

.47
42-3
3/16
1/2
.126

.58
42-4
1/4
9/16
.189

.69
42-5
5/16
5/8
.220

.79
42-6
3/8
3/4
.282

.88
42-8
1/2
7/8
.408

1.06
42-10
5/8
1-1/16
.502

1.19
42-12
3/4
1-5/16
.627

1.31
42-5×4
5/16×1/4
5/8
.220
.189
1.28
42-6×4
3/8×1/4
3/4
.282
.189
1.38
42-6×5
3/8×5/16
3/4
.282
.220
1.44
42-8×4
1/2×1/4
7/8
.408
.189
1.53
42-8×6
1/2×3/8
7/8
.408
.282
1.69
42-10×6
5/8×3/8
1-1/16
.502
.282
1.88
42-10×8
5/8×1/2
1-1/16
.502
.408
1.87

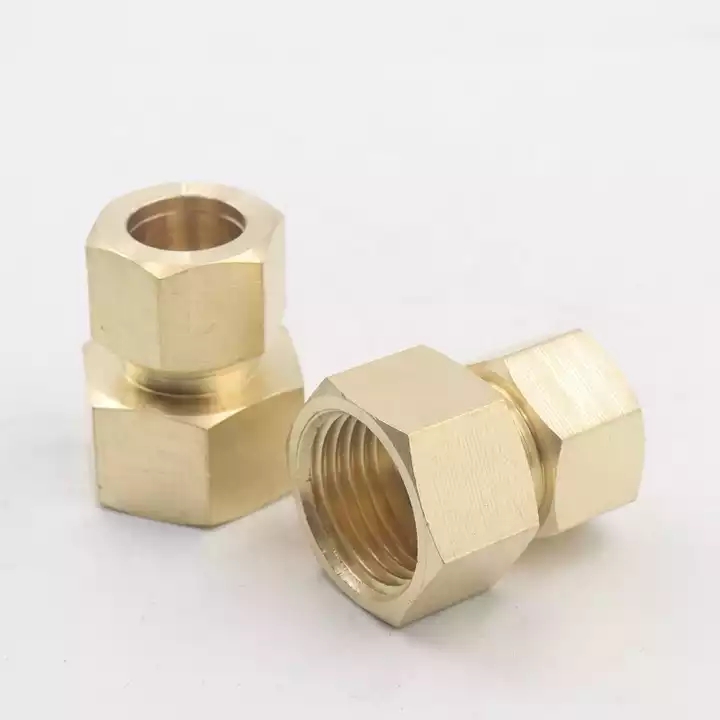

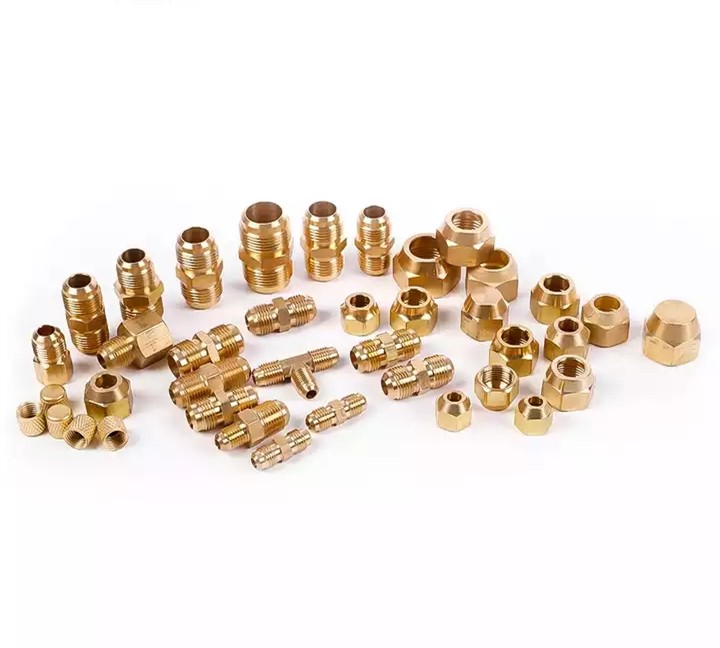

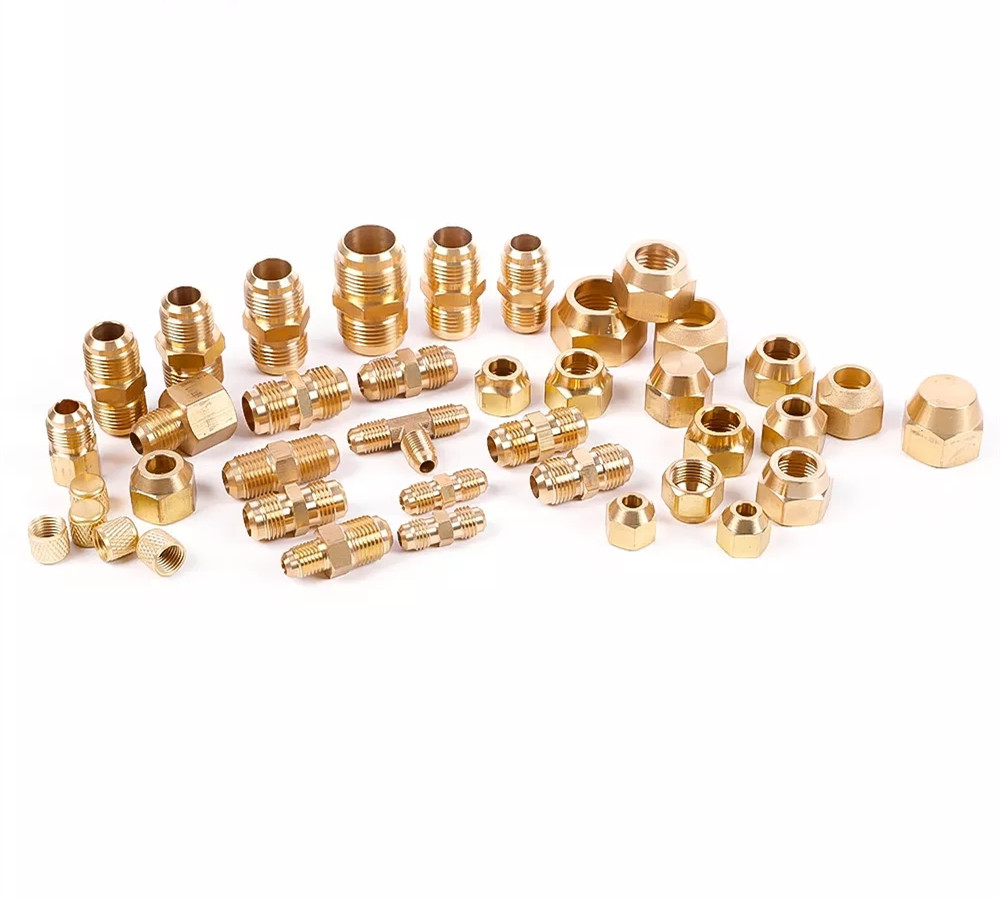

Ha3405115201f4439b987c74c59e01cdfN.webp.jpgH6d4d1cc9c1b149a4b6ef5bd32d5605f9t.jpg_720x720q50.webp.jpg

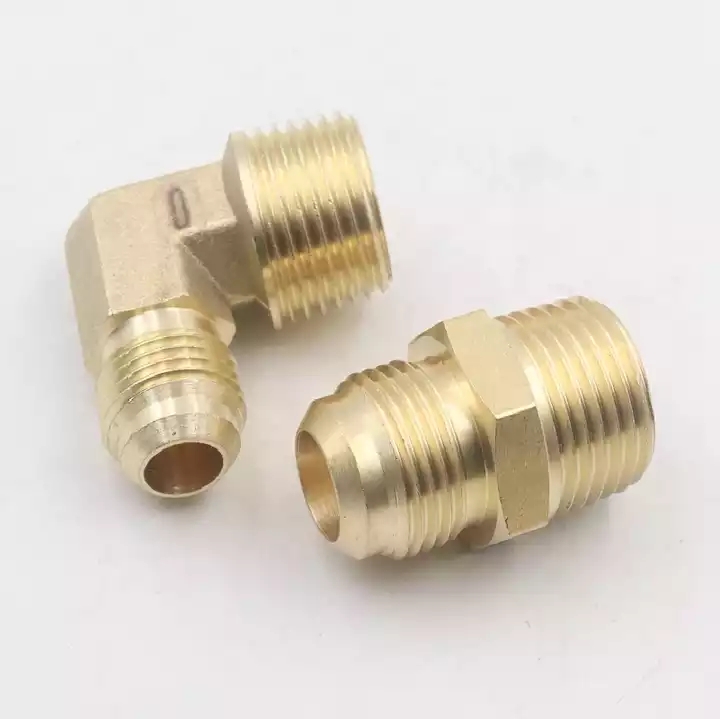

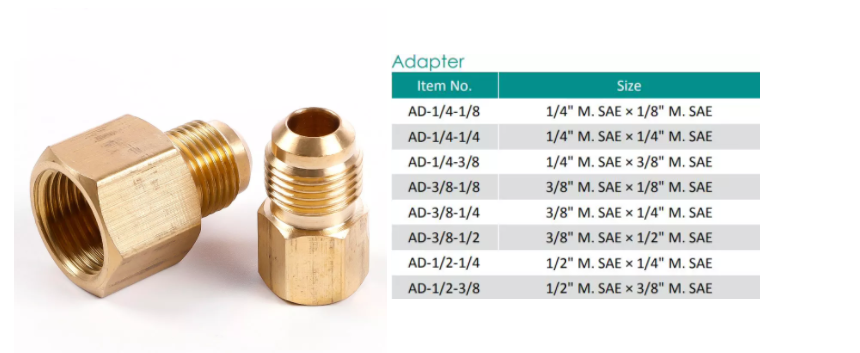

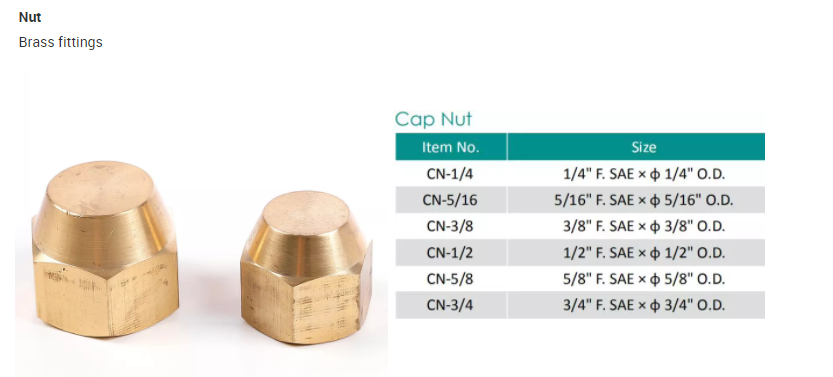

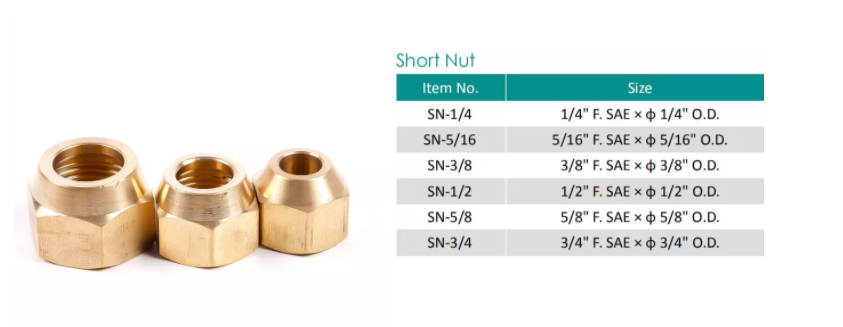

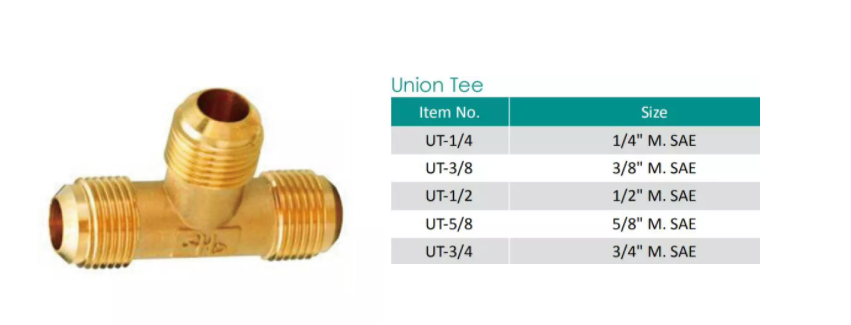

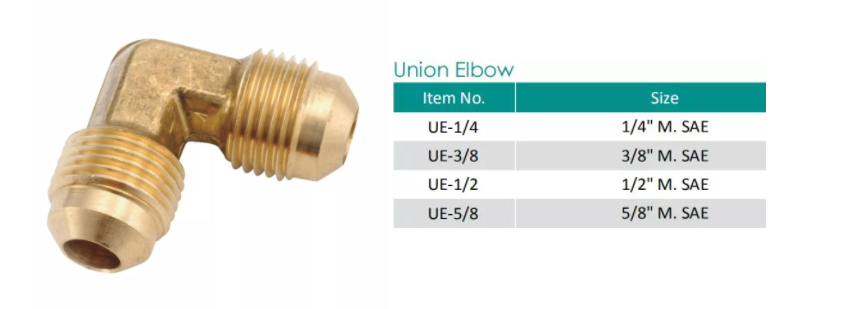

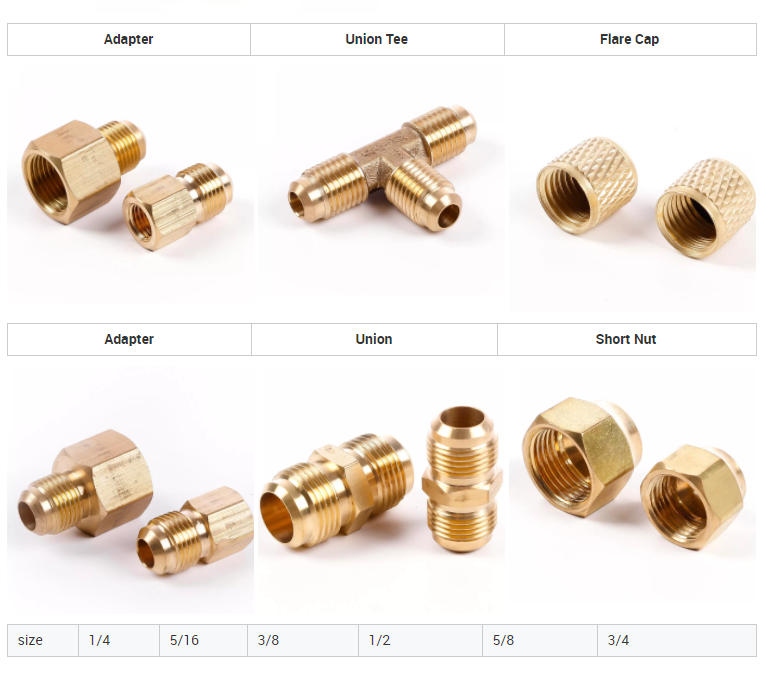

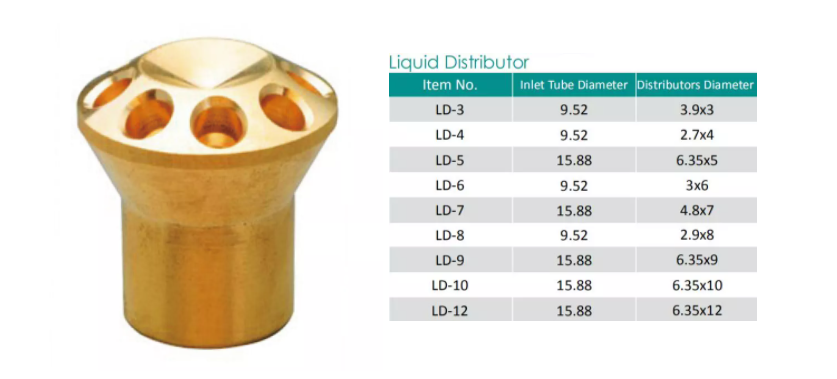

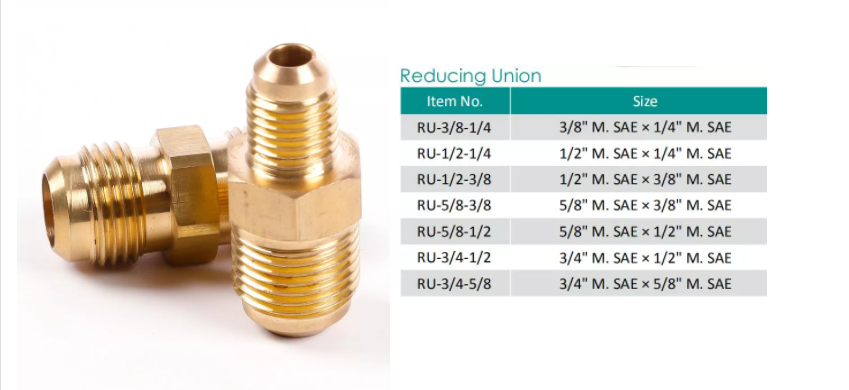

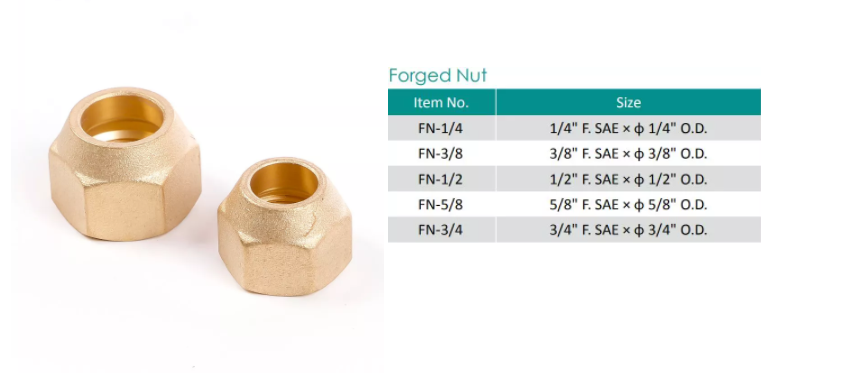

1656302881(1).jpg1656302899(1).jpg1656302941(1).jpg1656302967.jpg1656302985(1).jpg1656303007(1).jpg1656303032(1).jpg


Packing&Shipping

FAQ
Q1. How about the Delivery time?
A. About 15-35 days.

Q2. What kind of payments does jenor support?
A. T/T,L/C ,D/P are accepted or other methods negotiable.

Q3. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
