Surface Bright
Material 6j12
Brand: NXF
+86-13917160311
Reservation Now
Detail




Product Description

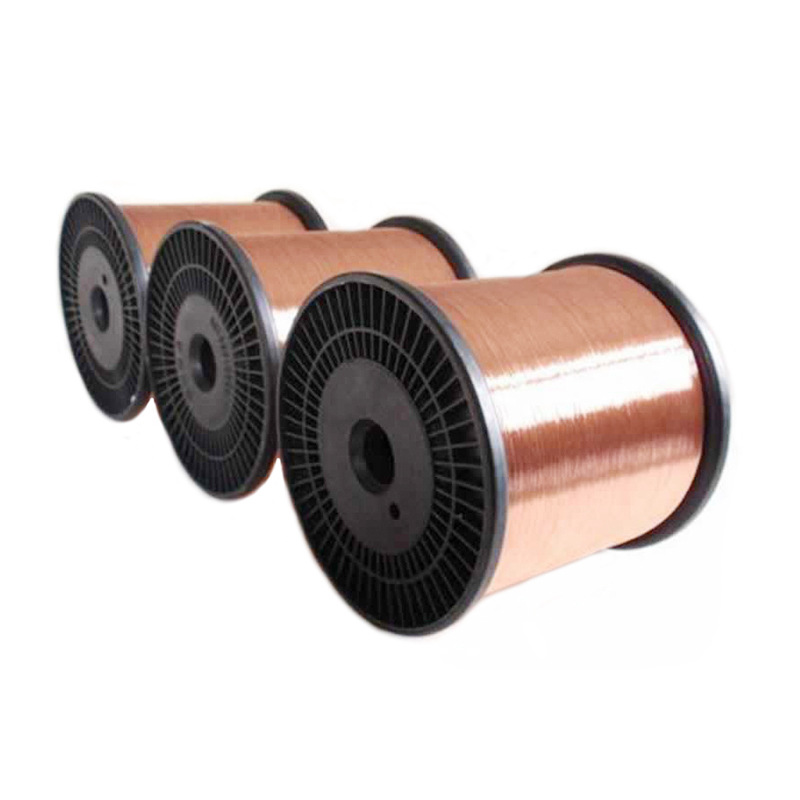

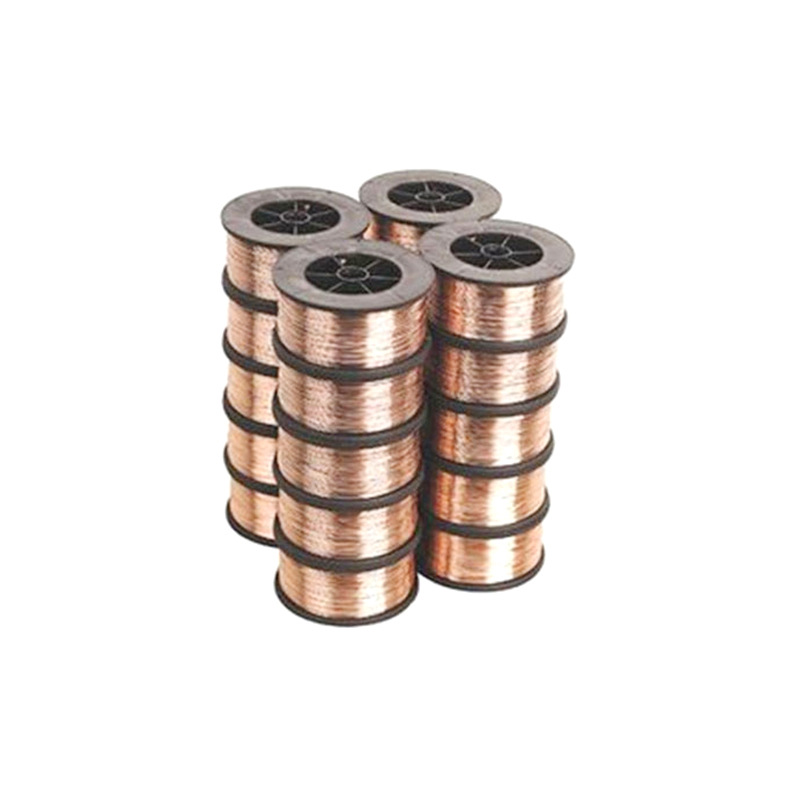

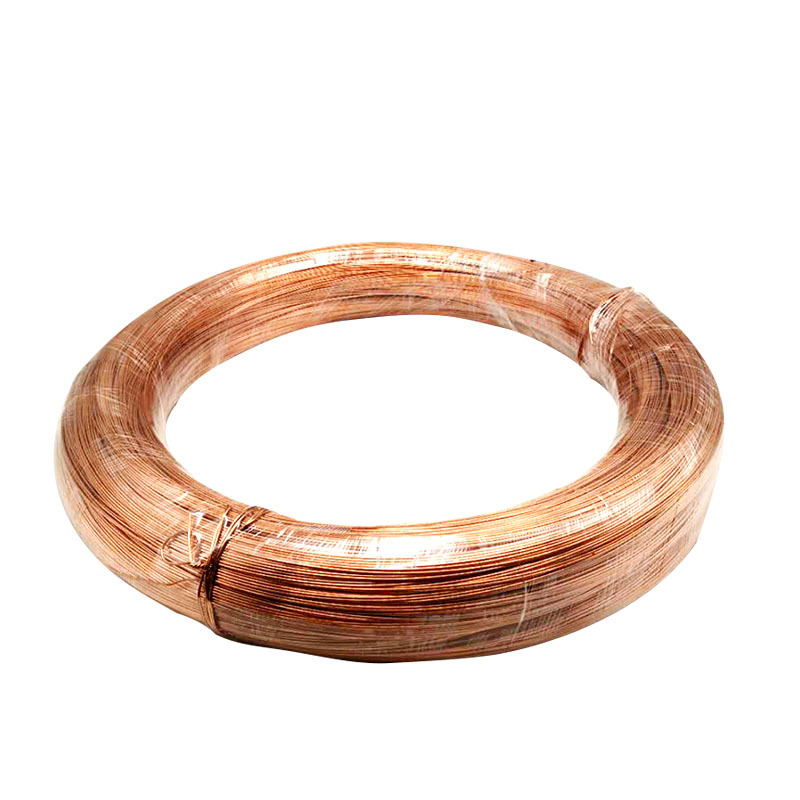

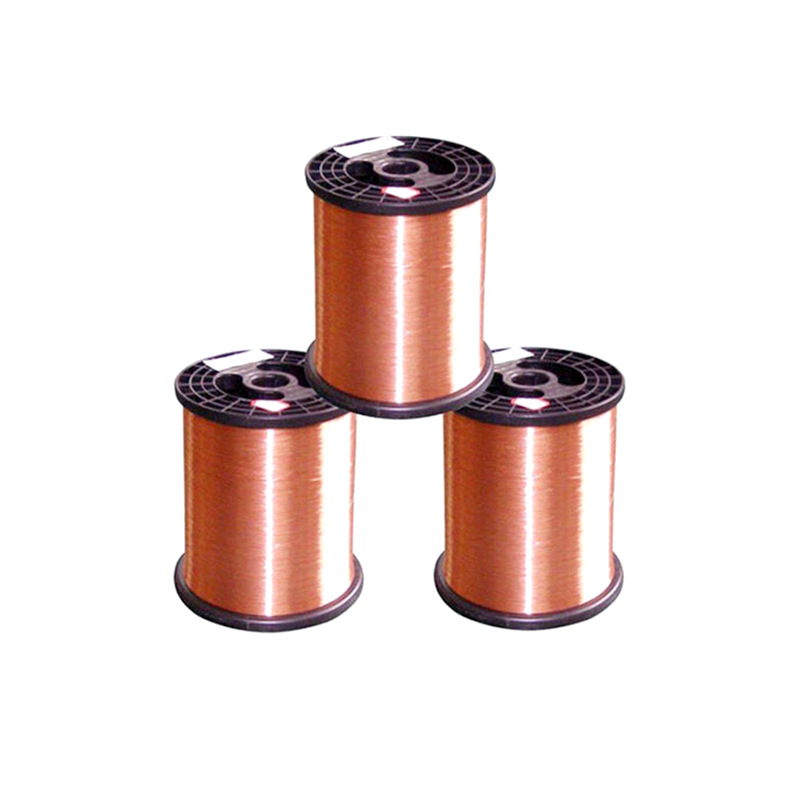

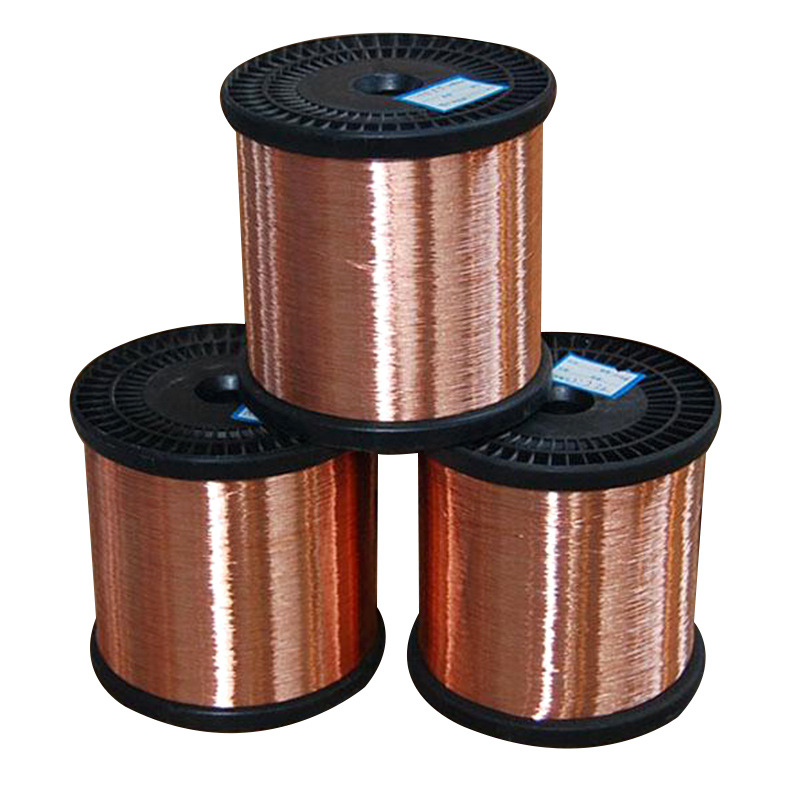

Cheap-Price-Manganese-Copper-Alloy-Manganin-Wire-6j12-6j8-6j13.webp.jpg18246825452_1943154023.jpg10190410400_2145945194.jpg2.jpg1.jpg18246816654_1943154023.jpg

Specification

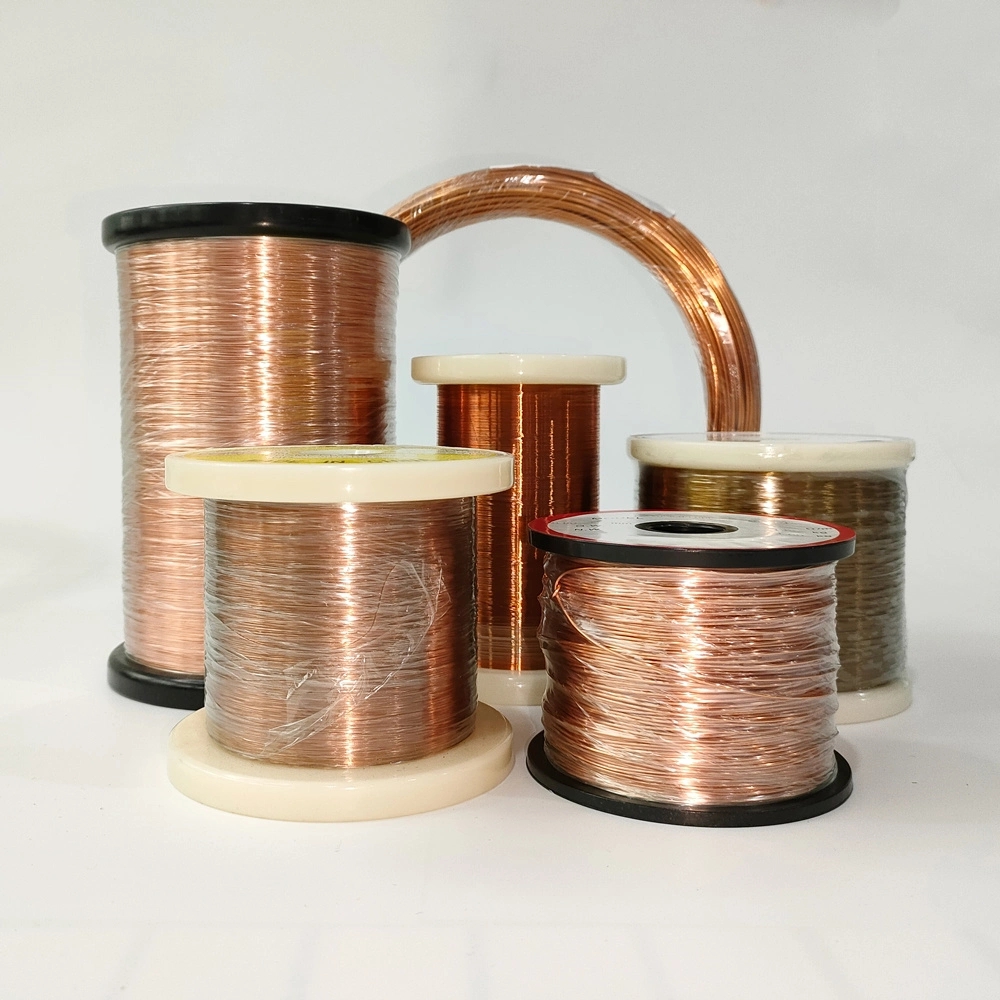

Copper Manganese Nickel Wire used for electrical and controlled resistance applications. These alloys have very low temperature coefficient of resistance, and offer uniform electrical resistance over long periods of time. Additionally, they have very low thermal electromotive force against copper. These alloys have good workability, can be soldered, as well as welded.
Items
Manganin 6J12
Manganin 6J8
Manganin 6J13
Composition
Mn
8~10
11~13
1~2
Ni
2~3
--
2~5
Cu
Rest
Rest
Rest
Density (g/cm3)
8.44
8.7
8.4
Operating temperature range (ºC )

5~45
10~80
10~80
Temperature Coefficient of Resistance (10-6 /ºC )

-3~+20
-5~+10
0~+40
EMF VS Cu(0~100 ºC)

1μV/ºC
2
2
Resistivity (20ºC) (ohm*mm2/m)
0.47 ±0.03
0.35±0.05
0.44±0.04
Elongation
Min15%
min15
min15
Packing & Delivery
Packaging Details:Plastic film inside , wooden pallets outside , choose the suitable packing,Alos it can be customized by the clients' demand.
Delivery detail:According to the quantities and specifications of each order.Normal delivery time is from 30 to 45 days after receiving the deposit.

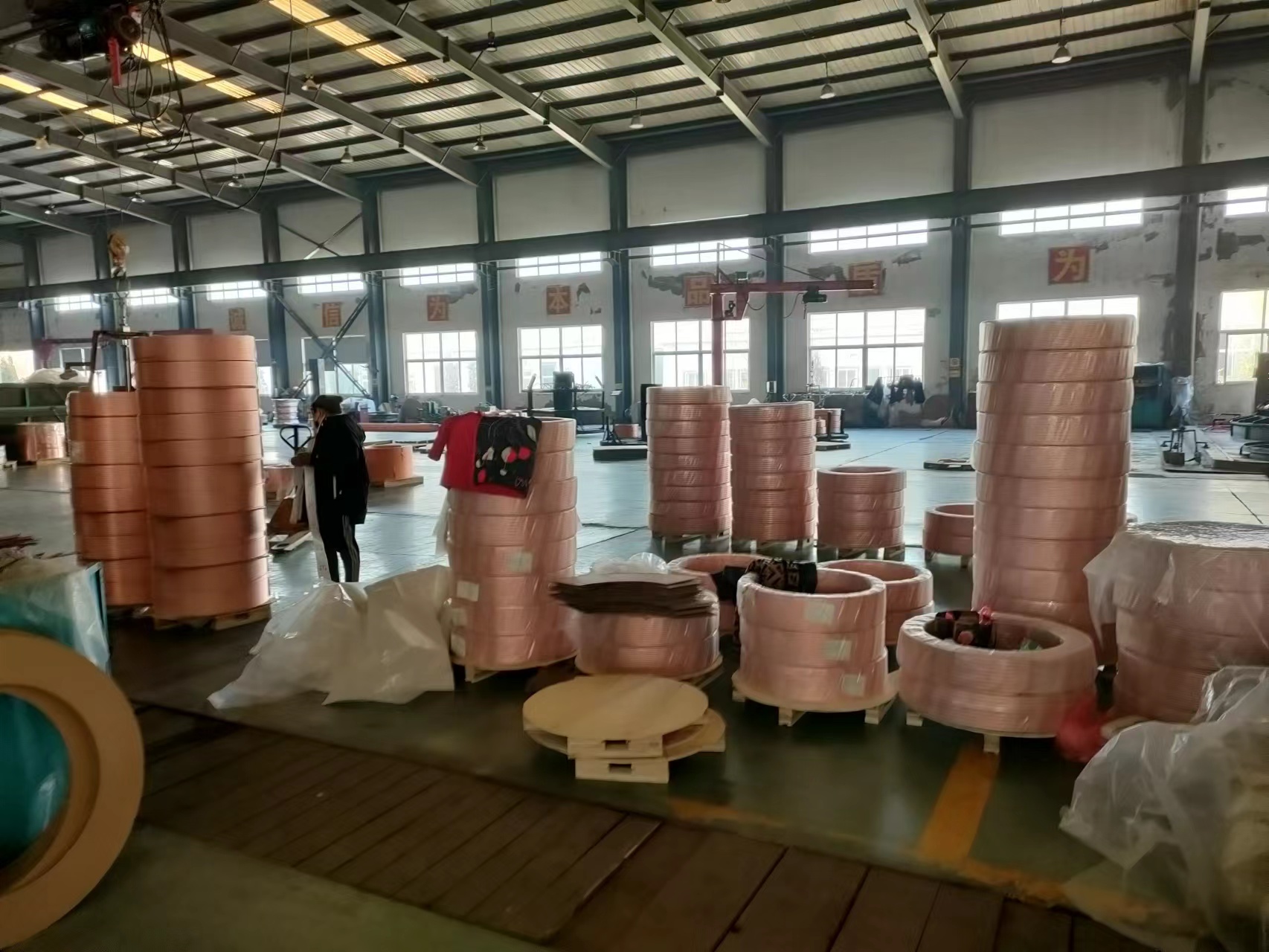

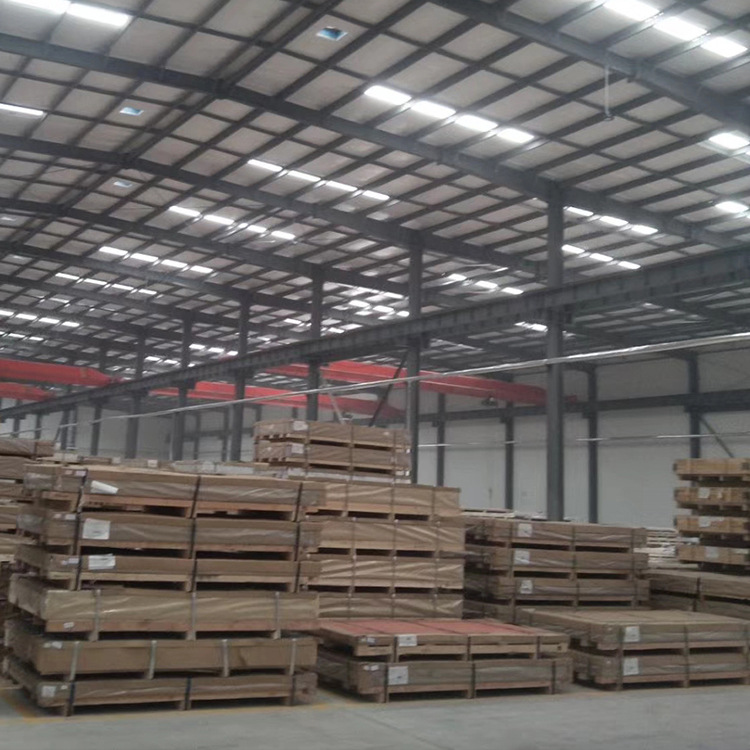

Company Profile

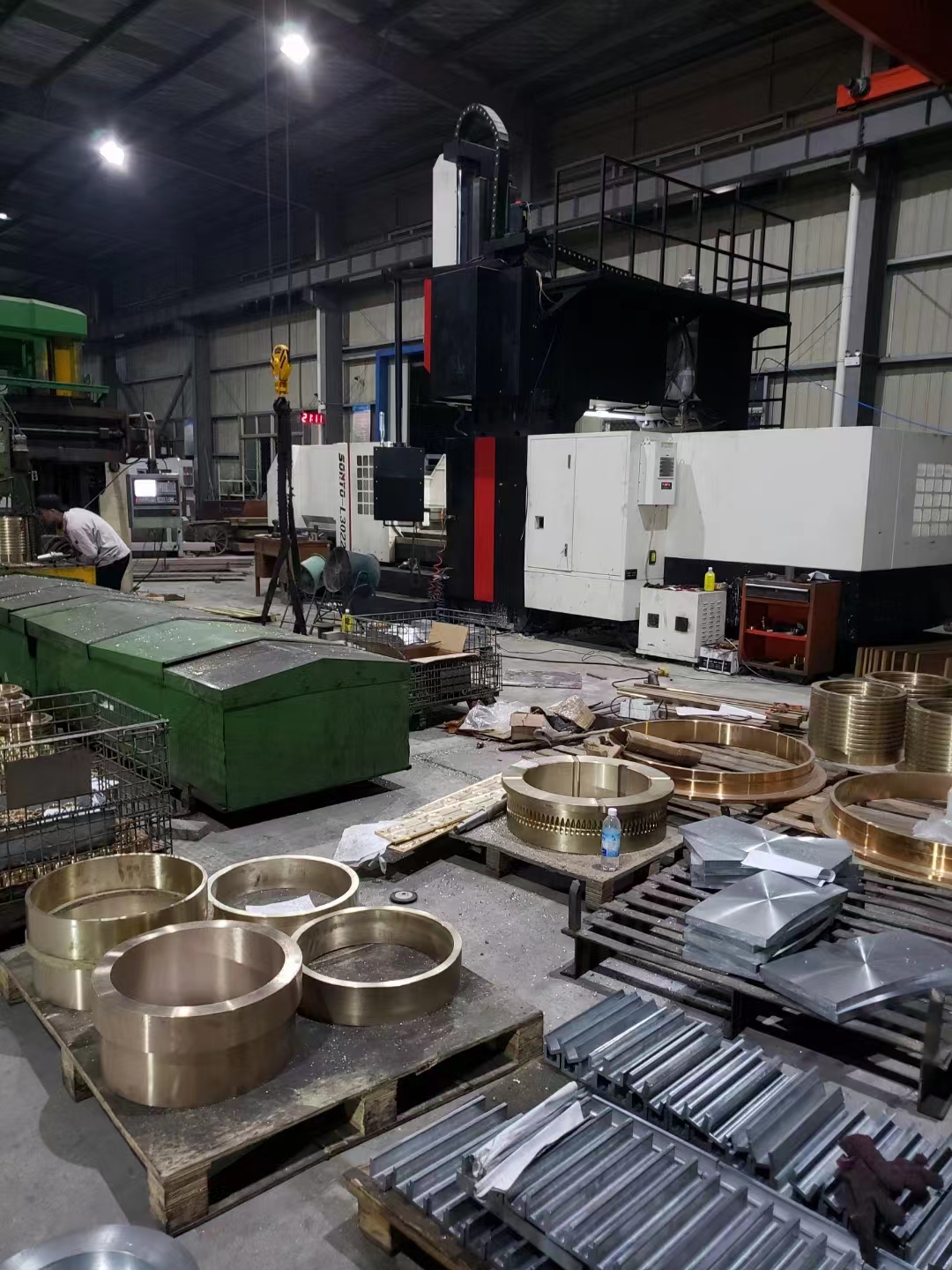

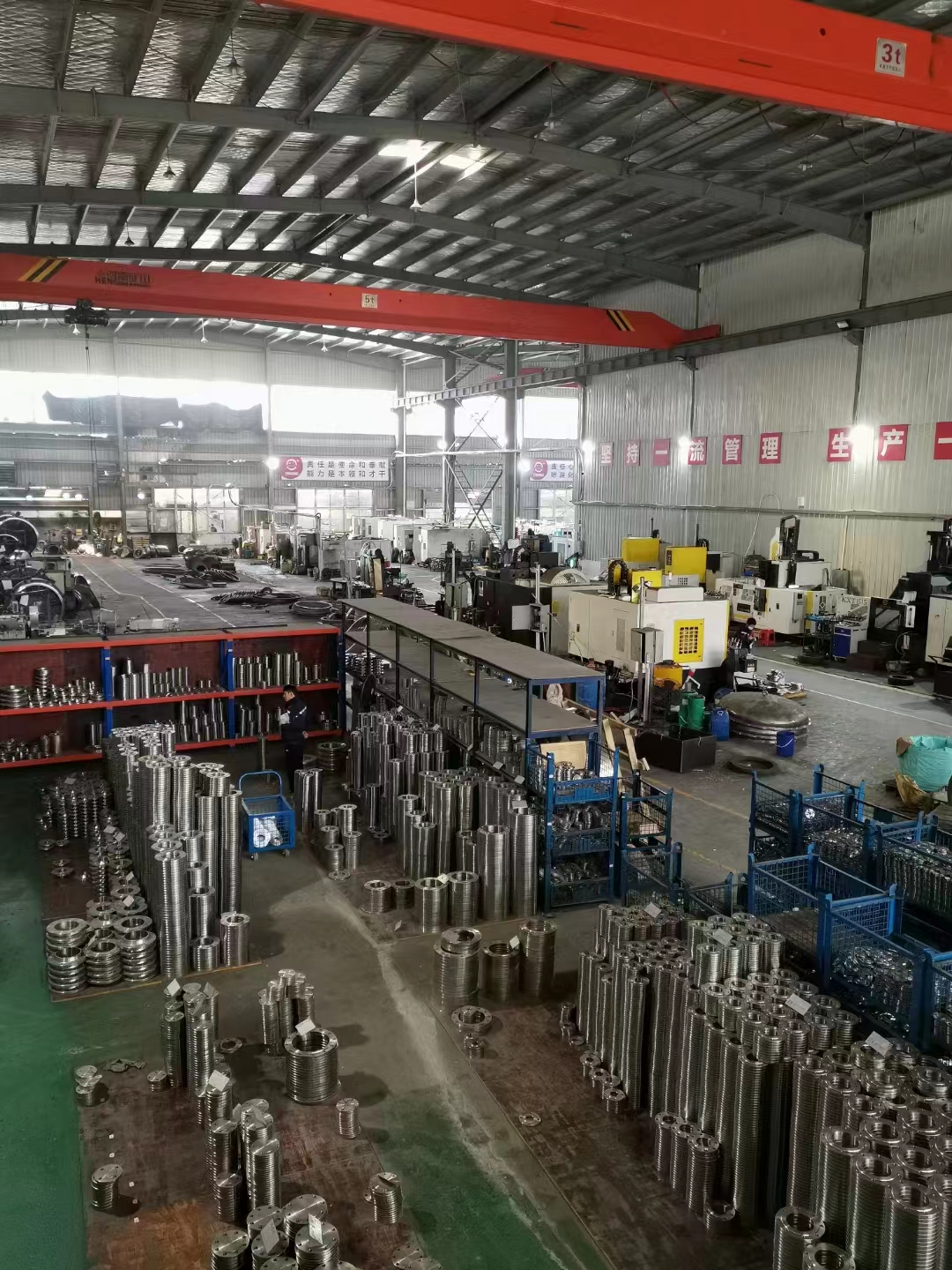

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories.
Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer.

2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
