NXF UNS A234 WBP/C-Mn-Si Carbon Steel Galvanizable Diameter M2-M36 Hardness Rating A2-70 Fastener Hex Flange Nuts

2026-02-05 17:12 NXF-GROUP
6


Product Description
A234 WPB Introduction
- Standard：ASTM A234 WPB, carbon/martensitic stainless steel butt-welding fittings for pressure systems. - Material Grades：Common grades: WPB, WPC, WPD, WPE, WPF, WP1, WP5, WP9, WP11, WP12, WP15, WP22, WP91, etc. (WPB most widely used).- Chemical Composition：Mainly C, Mn, Si, P, S; alloy grades add Cr, Mo, V for enhanced performance.- Mechanical Properties：Tensile strength ≥415MPa, yield strength ≥240MPa, elongation ≥22%, good toughness & weldability.- Application：Used in oil, gas, petrochemical, power, water treatment industries; for 150-2500 class pressure fittings(elbows,tees, reducers), working temp -29℃~593℃.- Key Features：High pressure resistance, corrosion resistance (alloy grades), stable performance, suitable for harsh working environments.
Hex Flange NutsIntroduction
A hex flange nut is a hexagonal fastener with an integrated wide, circular flange at one end. It combines the functions of a standard hex nut and a separate washer, forming a one‑piece, high‑stability locking and fastening component.Core Structure & FeaturesHexagonal drive section: Standard wrench/socket engagement for installation and torque application.Integral flange: Provides a large bearing surface, distributes clamping force, reduces surface pressure and damage to the mating part.Common flange types:Serrated flange: Serrations on the flange face bite into the substrate, resist loosening from vibration.Smooth flange: For soft materials or finished surfaces to avoid marring.No need for separate flat/lock washers, simplifies assembly and reduces part count.

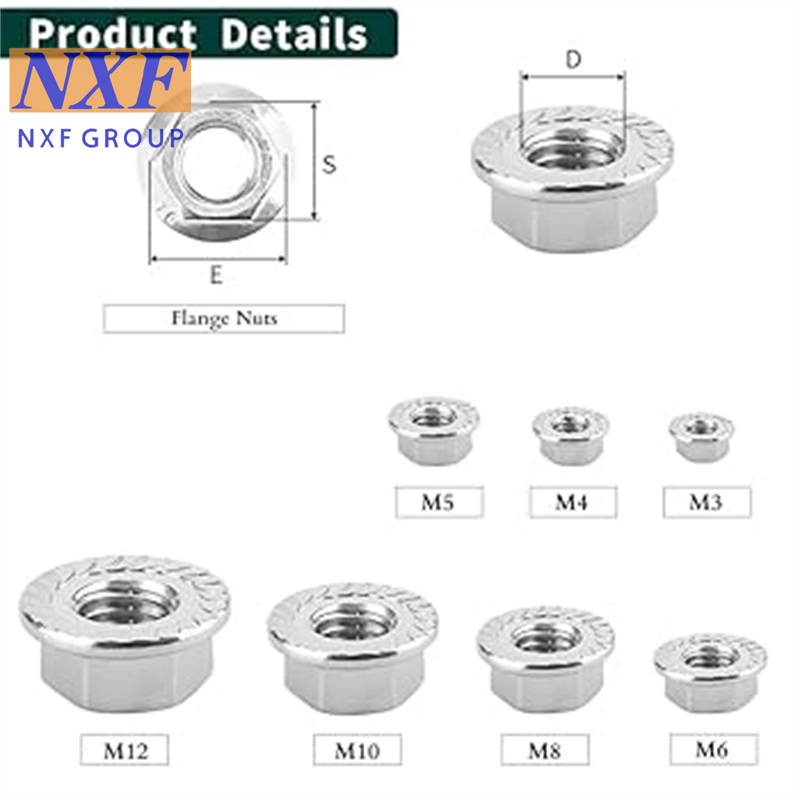

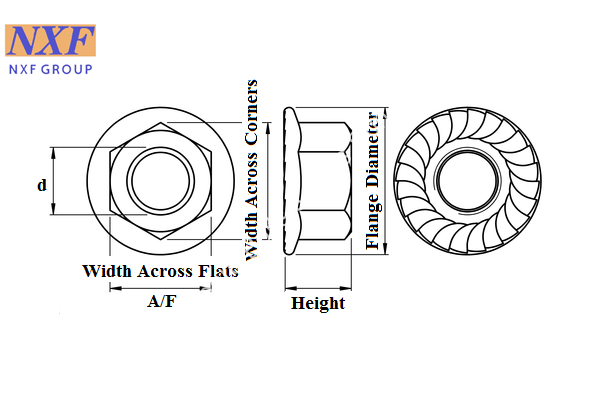

Hex Flange Nuts Drawing

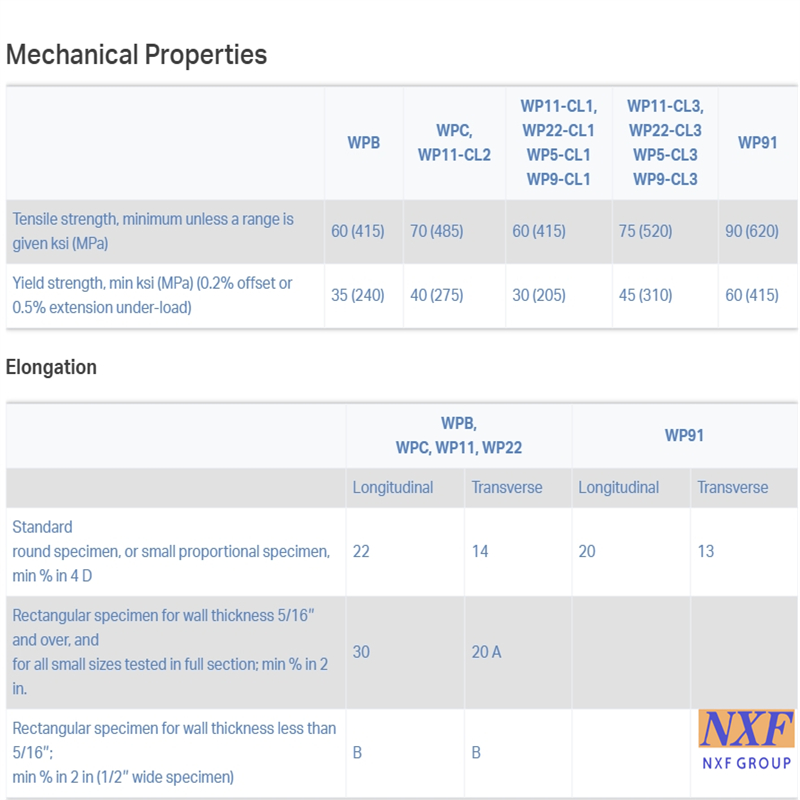

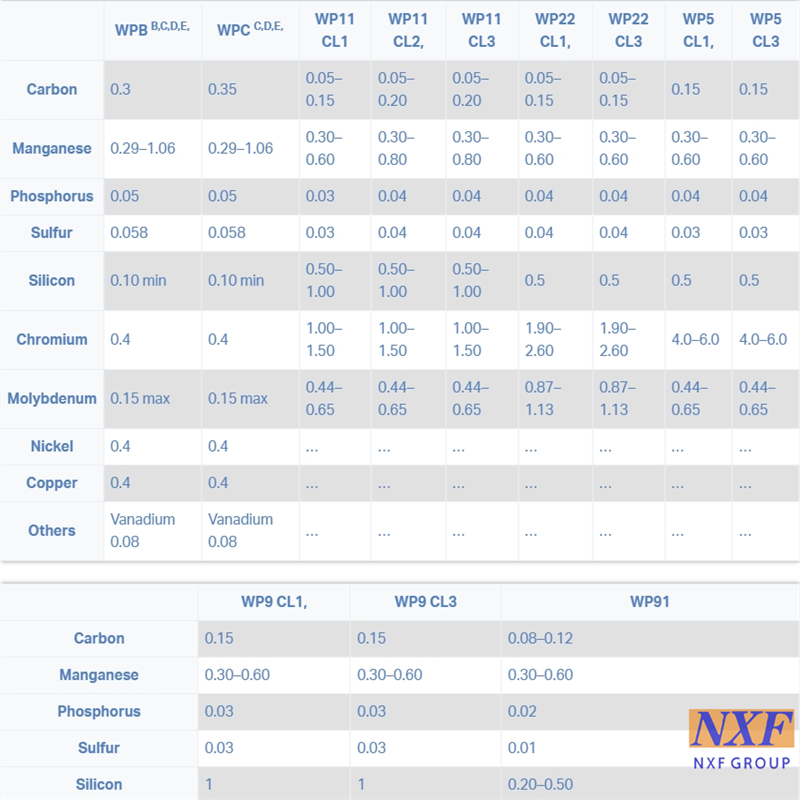

A234 WBP of Chemical Composition and Mechanical Properties

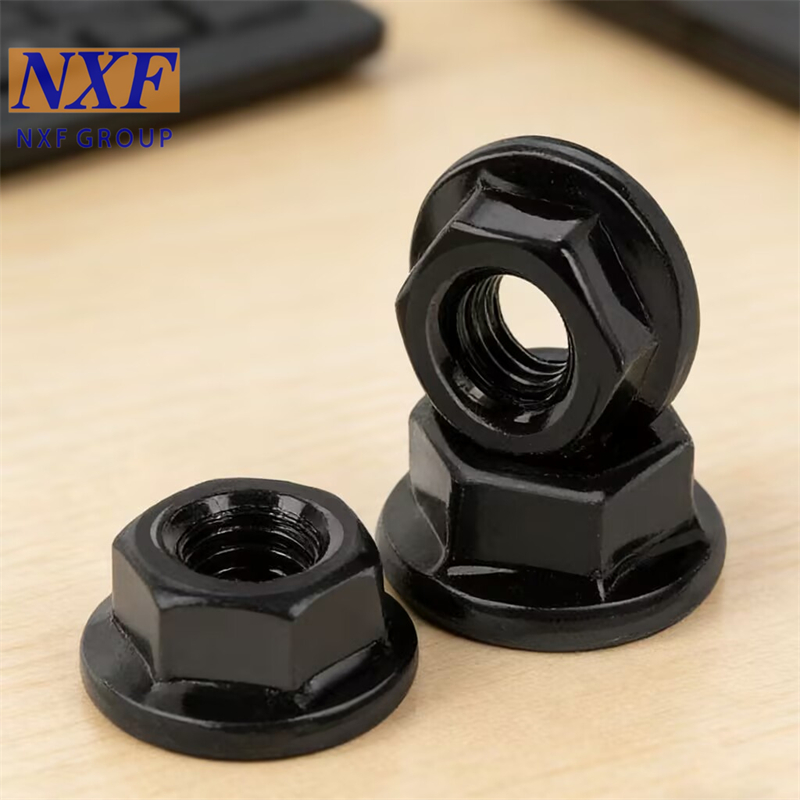

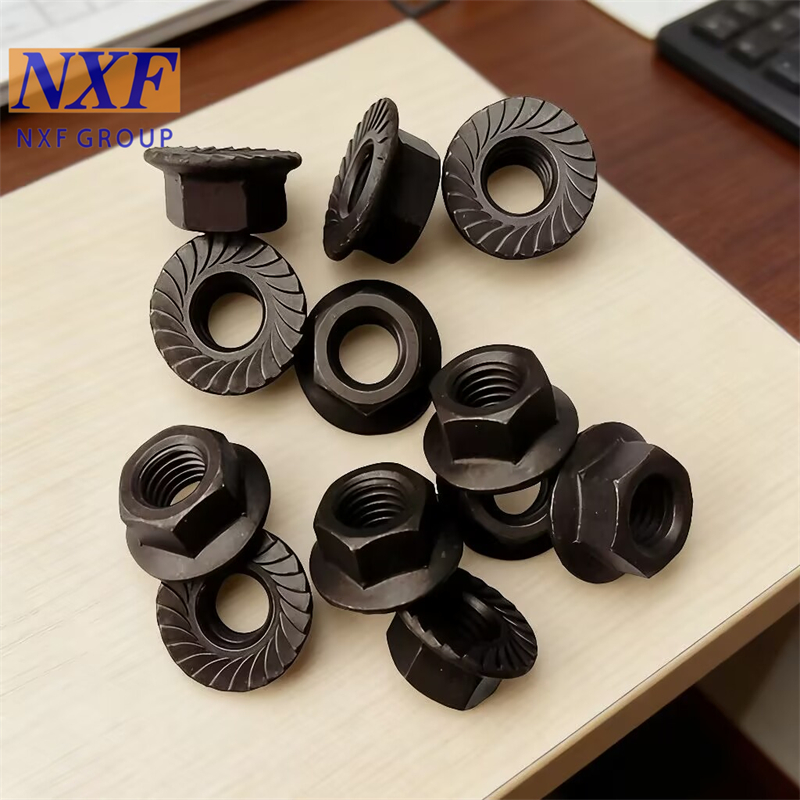

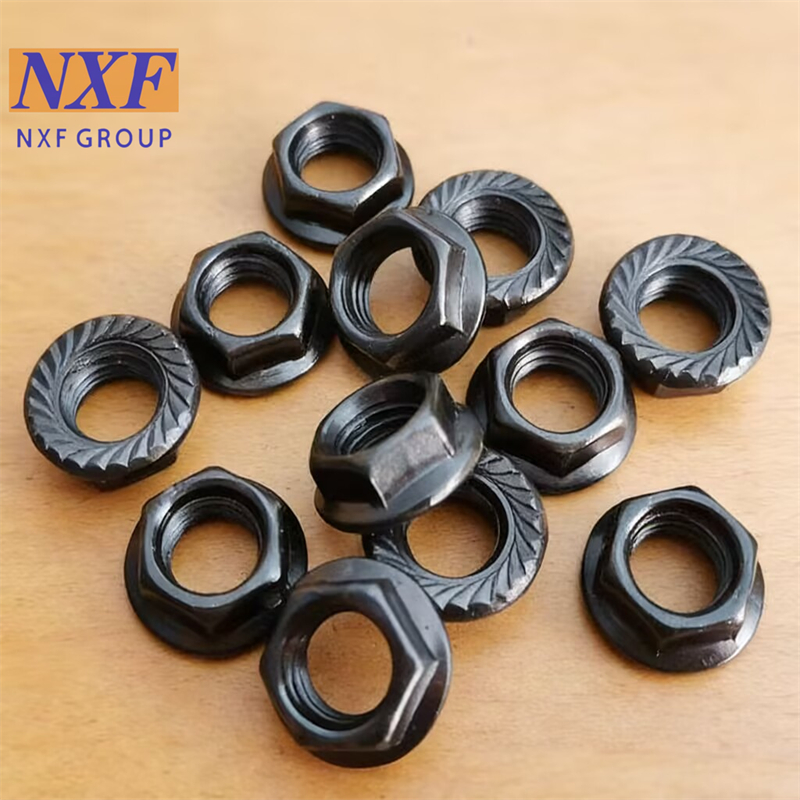

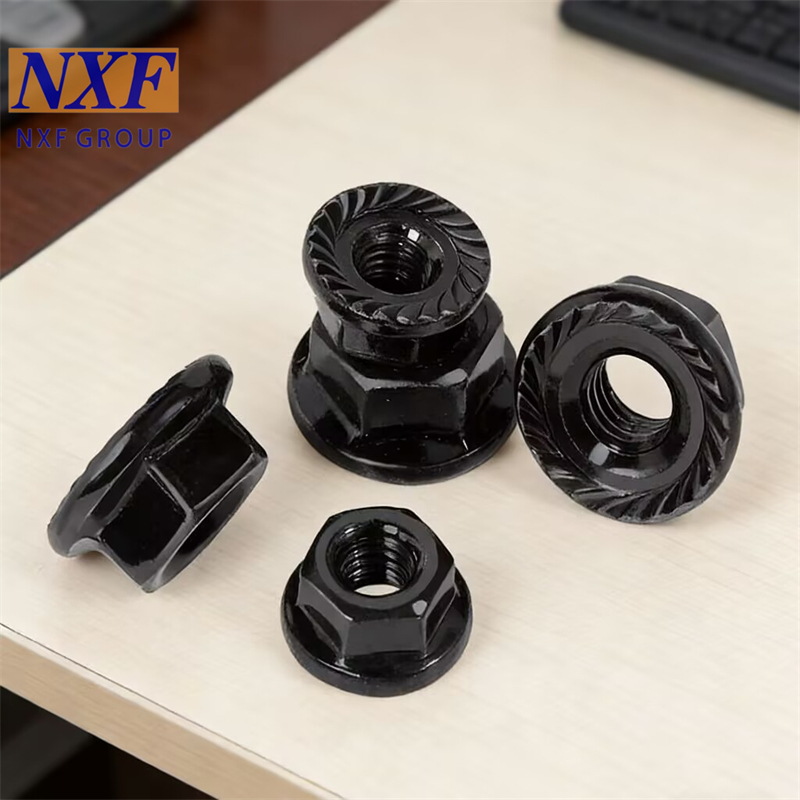

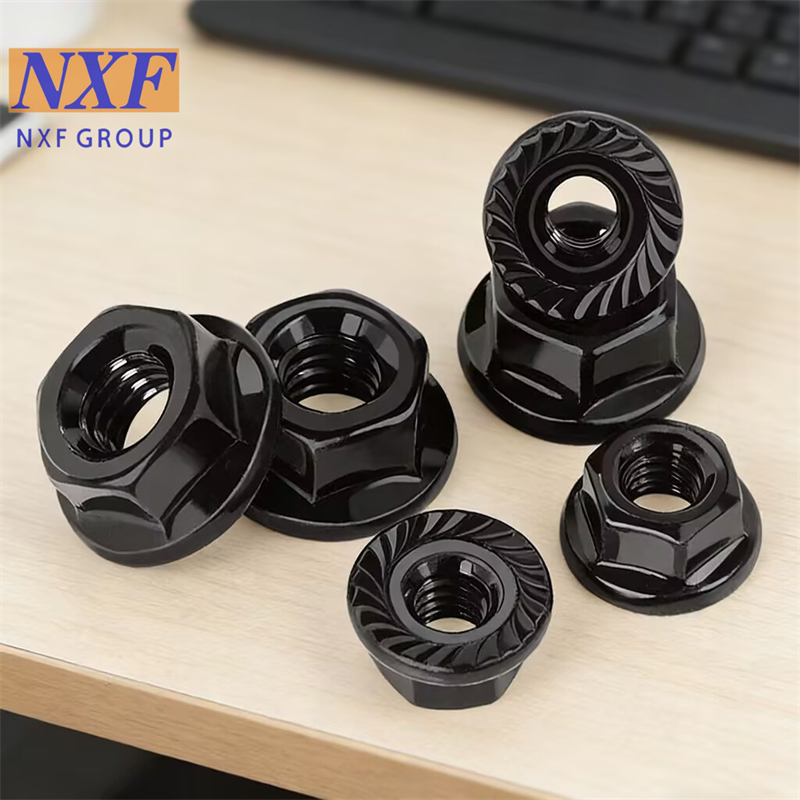

Hex Flange Nuts Actual product image
Specification

item
Hex Flange Nuts
finish
Polished, Plain, Black Oxide, Galvanized
measurement system
Imperial (Inch)
Grade
Class 10
place of origin
China
Province
Jiangsu
Hole Diameter
6 mm, 5 mm, 3 mm
Body Type
HEX
Thread Direction
Left Hand
Insert Diameter
9.5mm
Total Length
35 mm, 25mm
application
Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry, Other
Intended use
Nut for pipe nipple (gas installation)
Locking mechanism
Self-Locking
Screw length
8 mm
Thread length
10mm，12mm
Size
6, 8, 10
Total width
under 17mm
production method
Cnc Machining
compatible socket size
14 mm
small hole diameter
12 mm
grip-recesses
7
brand name
NXF
model number
NXF-Hex Flange Nuts
Overall Length
5 mm
drive system
Thread
Height
5mm
Head Type
HEX
Flange diameter
9in
Nut Shape
HEX
Thread Coverage
Fully Threaded
Product name
Hex Flange Nuts
Material
A234 WPB
Standard
DIN ANSI ASME JIS ISO
Nominal Diameter
M2-36
Hardness rating
A2-70
Thread
Metric Thread
MOQ
1 Pcs
Application
General Industry
Package
Woonden box
Brand
NXF

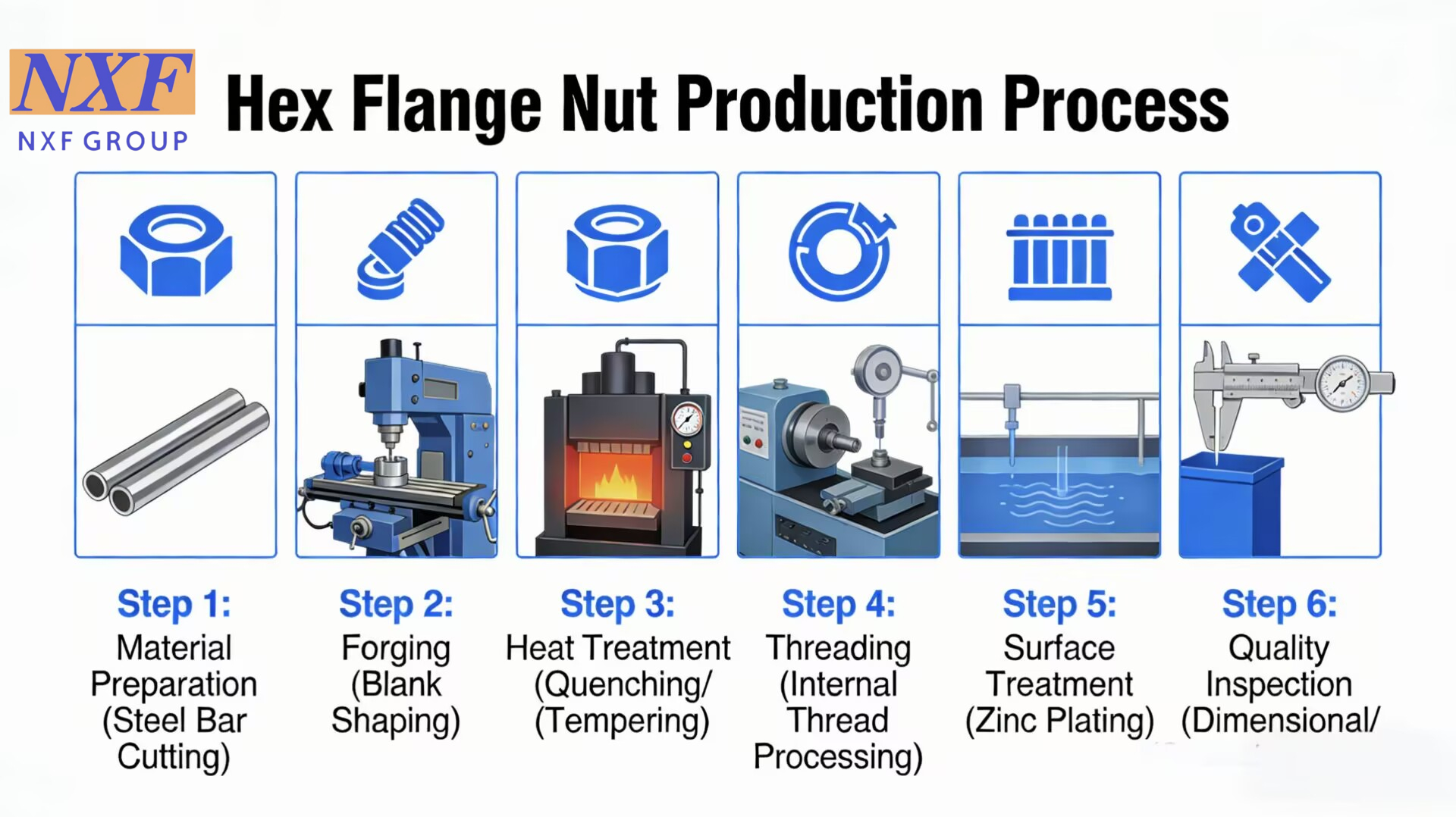

Hex Flange Nuts Produce Processing
Packing & Delivery
Shipping
Company Profile
New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."     Our advantage as follow: 1.We have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price. 2. We can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality. 3. Our biggest advantage is 3S service. Small quantity, short time, special materials.
FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material)        We have our own factories, quality can be controlled seriously.We Specialize in manufacturing about 21 years.We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Russian
